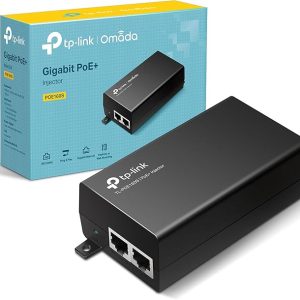

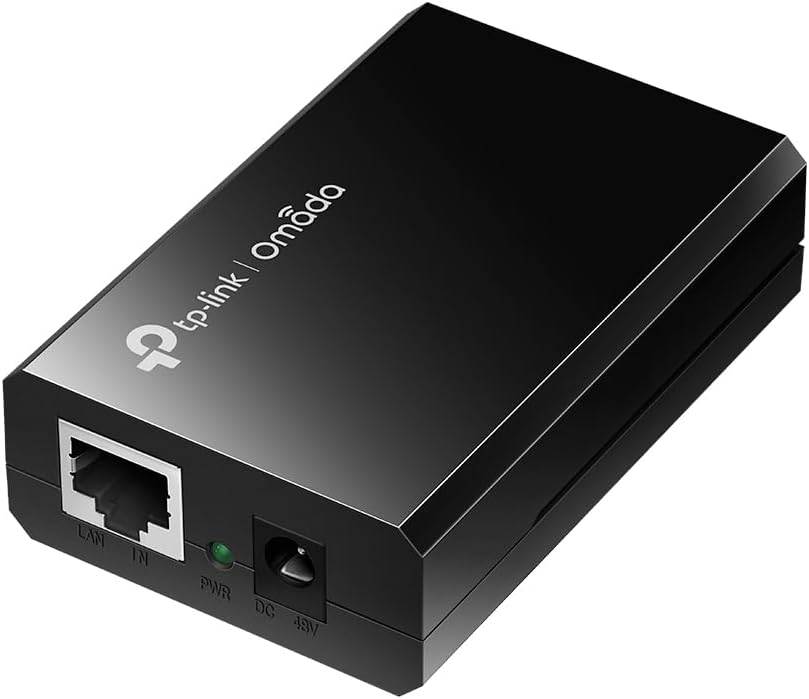

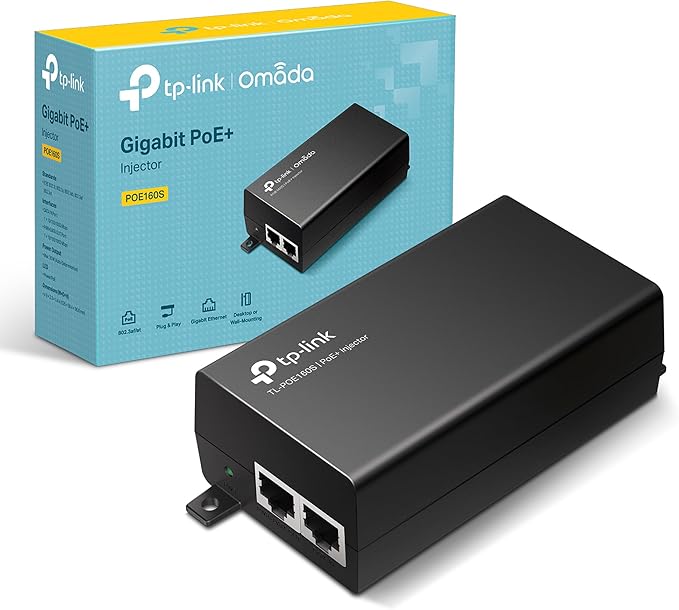

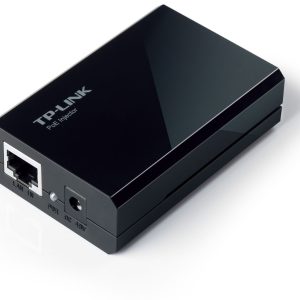

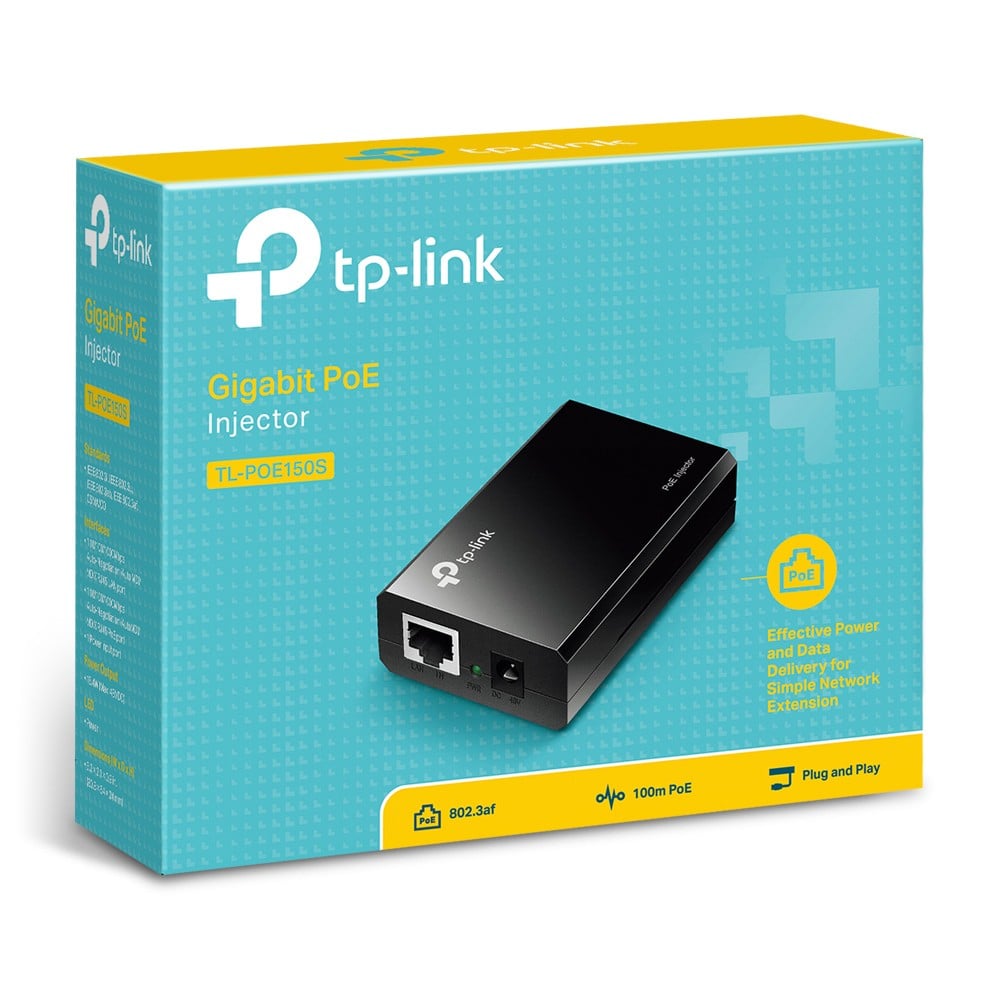

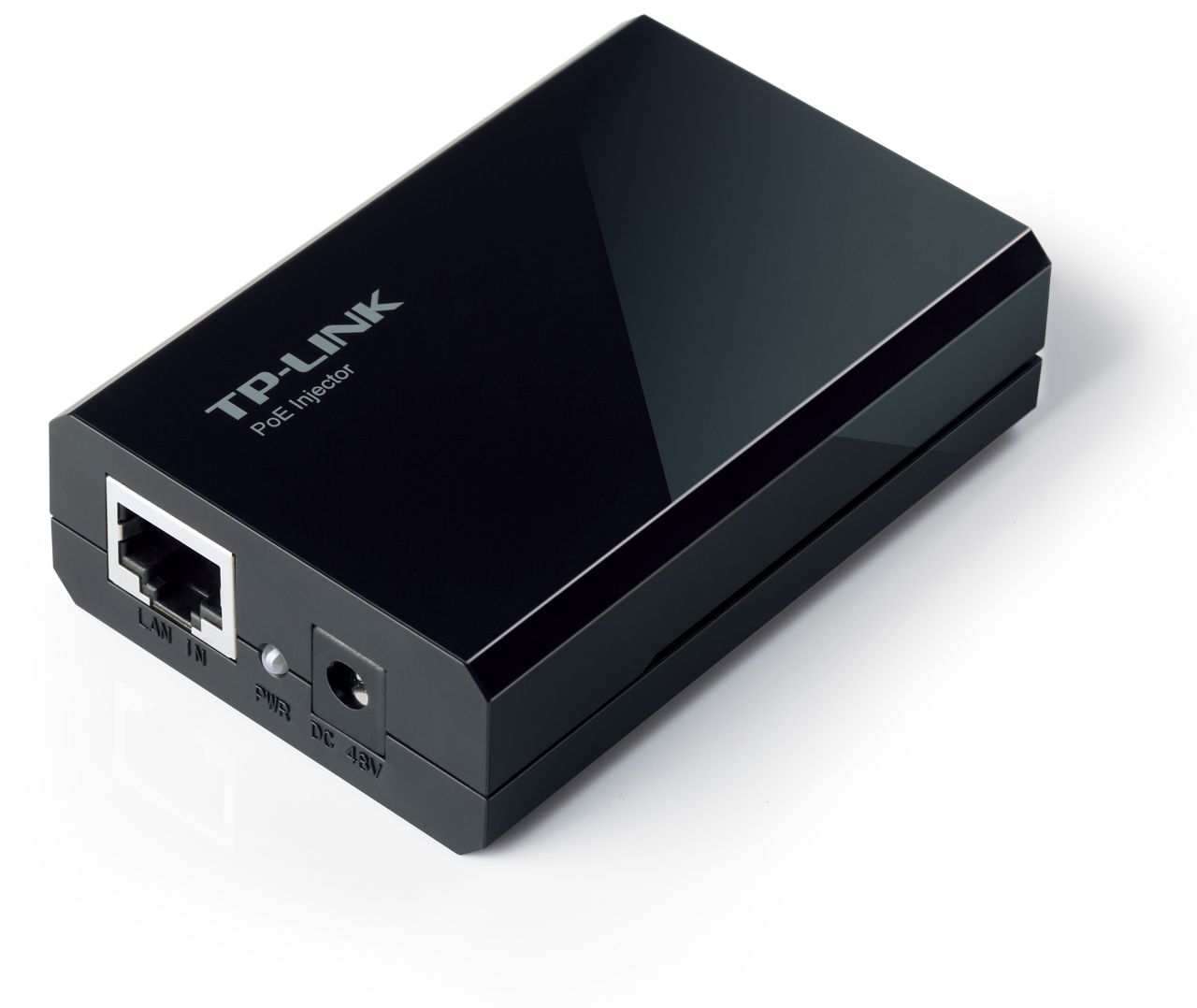

TP-Link PoE150S Gigabit PoE Injector
The TP-Link PoE150S Gigabit PoE Injector is a brand new IEEE 802.3af-compliant PoE injector, providing power and data through a single Ethernet cable. It’s ideal for powering IP phones, access points, and cameras up to 100 metres away. UK-stocked and ready for next-day delivery, with manufacturer warranty included.
£50.00 exc vat
PRODUCT OVERVIEW
The TP-Link TL-POE150S Gigabit PoE Injector provides power and network connectivity to a compatible IEEE 802.3af device through a single Ethernet cable.
It is ideal for installing compatible IP phones, wireless access points, IP cameras and other standard PoE devices where a mains socket is not conveniently available. Gigabit Ethernet support allows high-speed network traffic to pass through without limiting compatible network equipment to Fast Ethernet speeds.
Brand New
Supplied new and unused with the TP-Link PoE injector, compatible mains power adapter and installation guide. No configuration is required: connect the network input, power supply and compatible PoE device.
WHAT’S INCLUDED
- ✓ TP-Link TL-POE150S PoE Injector
- ✓ Compatible Mains Power Adapter
- ✓ Installation Guide
- ✓ Manufacturer Packaging
- ✓ 12-Month PCL Warranty
- ✓ Free Next Day UK Delivery
OPTIONAL EXTRAS
- + CAT5e RJ45 Patch Lead
- + CAT6 RJ45 Patch Lead
- + Compatible PoE IP Phone
- + Compatible Wireless Access Point
- + Compatible IP Camera
- + 24-Month Extended Warranty
KEY FEATURES
IEEE 802.3af PoE
Designed for compatible standard PoE-powered devices
Designed for compatible standard PoE-powered devices
Up to 15.4W
Automatically determines the connected device’s power needs
Automatically determines the connected device’s power needs
Gigabit Ethernet
Supports network speeds of up to 1000Mbps
Supports network speeds of up to 1000Mbps
Power and Data
Carries both through one Ethernet cable to the device
Carries both through one Ethernet cable to the device
Plug and Play
Requires no software, account or configuration
Requires no software, account or configuration
Up to 100 Metres
Supports standard Ethernet cable runs within specification
Supports standard Ethernet cable runs within specification
DESIGNED FOR BUSINESS
The TP-Link TL-POE150S allows a compatible network device to receive both electrical power and Ethernet data through one network cable.
This can simplify the installation of IP phones, access points and cameras in locations where a nearby electrical socket is unavailable or inconvenient.
One Gigabit Ethernet port accepts the network connection from a switch, router or other network source.
The second Gigabit Ethernet port sends network data and PoE power to the connected powered device.
Support for 10/100/1000Mbps Ethernet allows the injector to be used without restricting compatible Gigabit equipment to 100Mbps.
Auto-negotiation and Auto MDI/MDIX support help simplify network connection without requiring a crossover cable.
The injector complies with the IEEE 802.3af standard and automatically identifies the power requirements of a compatible connected device.
Maximum injector output is 15.4W at 48V DC. The usable power available at the device may be lower after normal cable losses.
The injector does not require a management interface, software installation, telephone licence or network configuration.
A power indicator LED provides a simple visual indication that the unit is receiving electrical power.
The compact enclosure can be positioned near the network switch, router or other non-PoE network connection.
Standard Ethernet cabling can be used over a total cable distance of up to 100 metres, subject to cable type, installation quality and Ethernet specifications.
For Gigabit Ethernet, suitable CAT5e or CAT6 cabling should normally be used.
The TL-POE150S is a single-port injector and powers one compatible device.
It does not add network ports, route internet traffic or provide a network connection by itself. A separate Ethernet network source is required.
The unit is intended for indoor use and should be installed in a dry, ventilated location with the supplied compatible power adapter.
TECHNICAL SPECIFICATIONS
| Model | TP-Link TL-POE150S |
| Product Type | Single-Port PoE Injector |
| PoE Standard | IEEE 802.3af |
| Maximum PoE Output | 15.4W |
| Output Voltage | 48V DC |
| Powered Devices | IEEE 802.3af Compatible |
| Ethernet Ports | 2 × RJ45 |
| Network Input | Data In |
| Device Output | Data and Power Out |
| Ethernet Speed | 10/100/1000Mbps |
| Auto Negotiation | Yes |
| Auto MDI/MDIX | Yes |
| Maximum Cable Distance | Up to 100 Metres |
| Gigabit Cable Type | CAT5e or CAT6 Recommended |
| Power Detection | Automatic |
| Configuration Required | No |
| Indicator | Power LED |
| Management | Unmanaged |
| Devices Powered | 1 |
| PoE+ IEEE 802.3at | No |
| PoE++ IEEE 802.3bt | No |
| Installation | Desktop / Indoor |
| Dimensions | 80.8 × 54 × 24mm |
| Power Adapter Included | Yes |
| Colour | White |
WHY BUY NEW FROM PCL?
1. Brand-New Equipment
Supplied new and unused for reliable professional installation.
2. Standard PoE Support
Designed for compatible IEEE 802.3af-powered devices.
3. Gigabit Networking
Passes compatible network traffic at up to 1000Mbps.
4. Plug and Play
Requires no software, account or manual configuration.
5. Automatic Detection
Determines the power requirements of compatible devices.
6. Compact Design
Easy to position alongside existing network equipment.
7. PCL Warranty
Covered by our 12-month warranty for added peace of mind.
8. Fast UK Delivery
Securely packed and supplied with free next day UK delivery.
COMPATIBILITY & SETUP
The TP-Link TL-POE150S is designed for devices that comply with the IEEE 802.3af PoE standard and require no more than the available power output.
Connect a network cable from a switch, router or network socket to the injector’s data-input port. Connect a second cable from the PoE-output port to the compatible powered device.
The injector supplies up to 15.4W at its output. IEEE 802.3af devices may receive a lower usable wattage after normal Ethernet cable losses.
Check the powered device’s required PoE standard and wattage before ordering. Equipment requiring IEEE 802.3at PoE+ or IEEE 802.3bt PoE++ may require a higher-powered injector.
The injector does not convert an incompatible non-PoE device into a PoE device. The connected equipment must accept standard IEEE 802.3af PoE or use a separately compatible PoE splitter.
The unit does not provide an internet connection or function as a switch. It passes an existing Ethernet connection while adding PoE power.
For Gigabit Ethernet operation, all connected equipment and cabling must support Gigabit speeds. CAT5e or CAT6 cable is recommended.
The maximum total Ethernet cable distance is normally 100 metres, subject to cable quality and the network installation.
Please note: Network cables and the powered device are not included unless specifically stated. Confirm the required PoE standard, voltage and wattage before connecting equipment.
