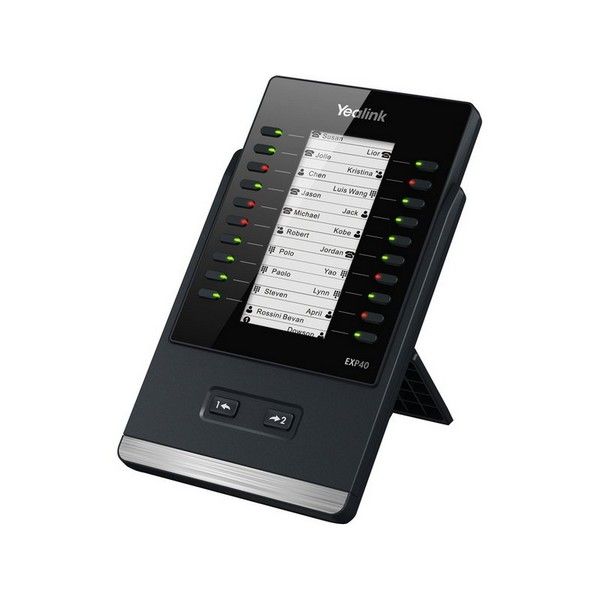

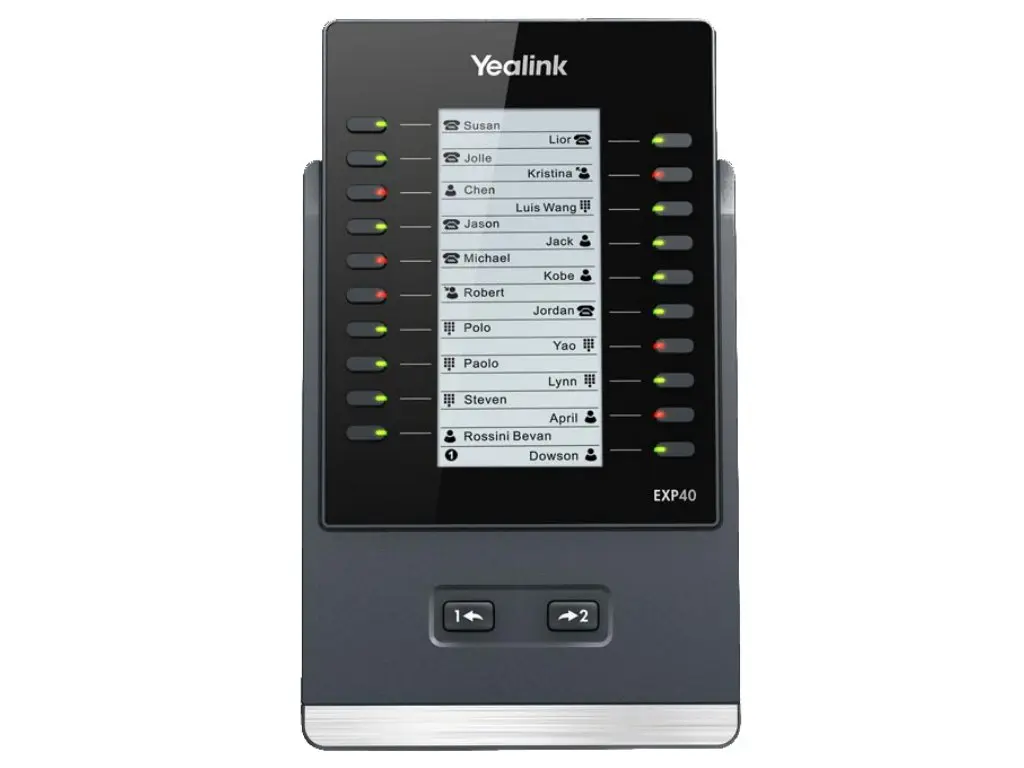

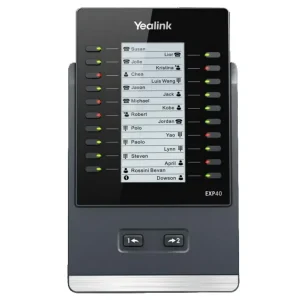

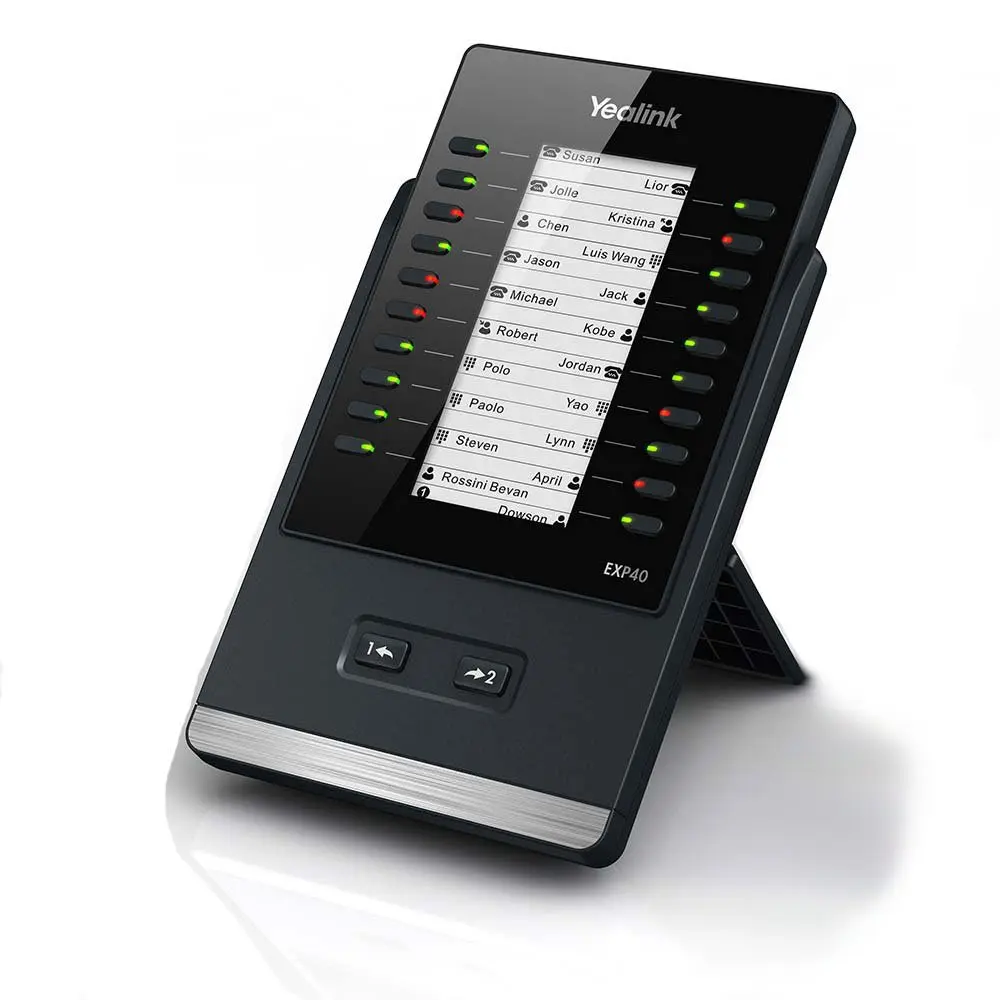

Yealink EXP40 Expansion Module (Refurbished)
The Yealink EXP40 is a refurbished expansion module with a dual 160×320 backlit display and 20 programmable keys per page. Professionally refurbished, fully tested, and supplied with a 12-month warranty.
Price range: £49.99 through £59.99 exc vat
PRODUCT OVERVIEW

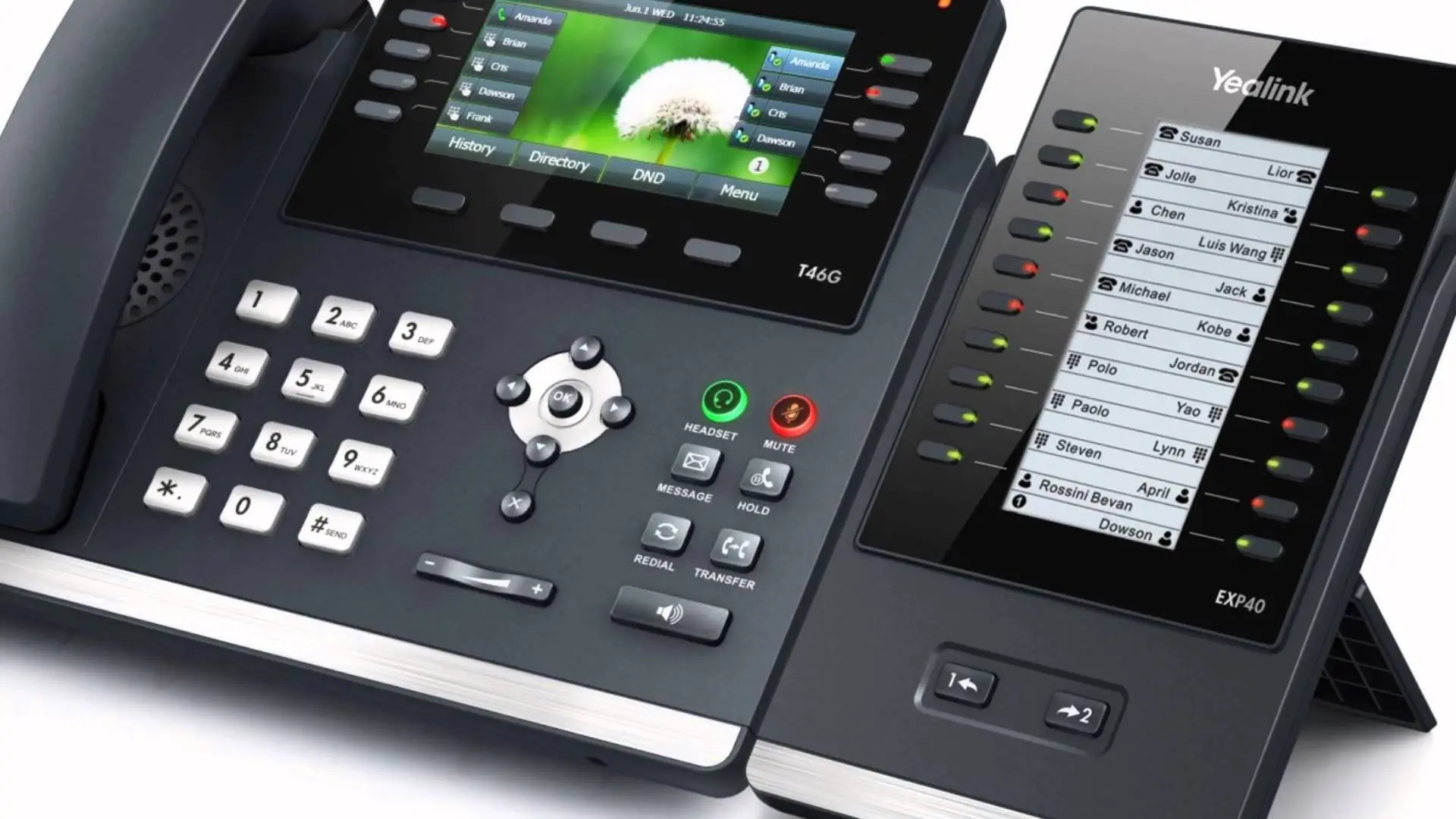

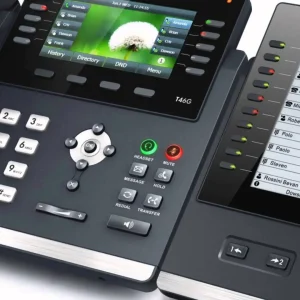

The refurbished Yealink EXP40 Expansion Module adds programmable keys and extension-status indicators to compatible Yealink T46 and T48 series SIP phones.
Its 160 × 320 backlit graphical display presents two pages of twenty programmable functions, providing access to up to forty key assignments. Each physical key has a dual-colour LED for clear line, Busy Lamp Field and feature-status indication.
Excellent Condition
Professionally refurbished, fully tested and cleaned. Very clean with minimal signs of previous use. The display, backlight, programmable keys, page controls, LED indicators and expansion connections are checked before dispatch.
Good Condition
Professionally refurbished, fully tested and cleaned. May show light cosmetic wear such as minor marks, surface wear or light key wear, but remains presentable and fully functional.
WHAT’S INCLUDED
- ✓ Yealink EXP40 Expansion Module
- ✓ Expansion Connecting Cable
- ✓ Adjustable Desktop Stand
- ✓ New Plain White Packaging
- ✓ 12-Month PCL Warranty
- ✓ Free Next Day UK Delivery
OPTIONAL EXTRAS
- + Compatible Yealink SIP-T46G Phone
- + Compatible Yealink SIP-T46S Phone
- + Compatible Yealink SIP-T48G Phone
- + Compatible Yealink SIP-T48S Phone
- + Compatible 5V Power Adapter
- + Additional EXP40 Modules
- + 24-Month Extended Warranty
KEY FEATURES
40 Programmable Functions
Two pages of twenty customisable key assignments
Two pages of twenty customisable key assignments
20 Physical Keys
Direct access to extensions, contacts and call functions
Direct access to extensions, contacts and call functions
Dual-Colour LEDs
Clear visual indication of line and extension status
Clear visual indication of line and extension status
Backlit LCD
160 × 320 graphical display with sixteen greyscale levels
160 × 320 graphical display with sixteen greyscale levels
Daisy-Chain Support
Connect up to six compatible EXP40 modules
Connect up to six compatible EXP40 modules
Flexible Positioning
Dual-angle desktop stand and wall-mount capability
Dual-angle desktop stand and wall-mount capability
DESIGNED FOR BUSINESS
The Yealink EXP40 is designed for receptionists, administrators, customer-service teams and other users who need direct access to a large number of extensions and telephone functions.
Twenty physical keys provide one-touch access to programmed lines, contacts, monitored extensions and call-management features.
Two page-control keys allow the user to move between two sets of assignments, providing up to forty programmable functions from one module.
Each key includes a dual-colour LED that can indicate extension availability, ringing, active calls and other system-supported states.
The precise meaning of each LED colour and flashing pattern depends on the connected phone, firmware and telephone-platform configuration.
Busy Lamp Field monitoring allows users to see the status of compatible extensions before placing or transferring a call.
Shared-line and Bridged Line Appearance functions can provide visibility and control of suitable shared telephone lines.
Programmable assignments can include speed dial, call transfer, call forwarding, call park, call pickup and group pickup.
Additional supported functions can include conferencing, group listening, LDAP directory access and XML applications.
Available assignments depend on the connected Yealink phone, installed firmware, provisioning profile and telephone service.
The 160 × 320 backlit graphical display shows labels and icons for each configured function.
Sixteen levels of greyscale provide clear presentation of text, symbols and status information.
The backlight helps maintain visibility in reception areas and offices with lower ambient lighting.
The module is designed to match the appearance and desktop angle of compatible Yealink T46 and T48 series phones.
Its desktop stand provides two adjustable viewing positions for different desk layouts and user preferences.
The EXP40 can also be wall mounted as part of a suitable compatible telephone installation.
Two RJ12 connections provide data input and output, allowing additional EXP40 modules to be connected in a daisy chain.
A compatible phone can support up to six EXP40 modules, providing up to 240 programmable assignments across the installation.
One or two connected modules are normally powered by the host telephone.
When more than two modules are connected, a compatible conventional 5V/1.2A power supply is required.
The EXP40 does not operate independently and cannot be connected directly to an Ethernet network, telephone line or SIP account.
Configuration is completed through the connected Yealink phone, its web administration interface or a compatible central provisioning system.
The EXP40 was discontinued by Yealink in December 2021 and is intended primarily for maintaining or expanding compatible existing installations.
It is not the correct module for Yealink T43U, T46U or T48U phones, which use the newer Yealink EXP43.
TECHNICAL SPECIFICATIONS
| Model | Yealink EXP40 |
| Product Type | LCD Expansion Module |
| Physical Programmable Keys | 20 |
| Page Views | 2 |
| Total Assignments | Up to 40 |
| Page-Control Keys | 2 |
| Key Indicators | Dual-Colour LEDs |
| Display | Backlit Graphical LCD |
| Display Resolution | 160 × 320 Pixels |
| Display Greyscale | 16 Levels |
| Connection Ports | 2 × RJ12 6P6C |
| Daisy-Chain Support | Yes |
| Maximum Modules | Up to 6 |
| Maximum Combined Assignments | Up to 240 |
| Host-Powered Modules | Up to 2 |
| External Power Requirement | More Than 2 Modules |
| External Power Supply | Compatible 5V / 1.2A |
| Maximum Power Consumption | Approx. 0.67W |
| Desktop Stand | Two Adjustable Angles |
| Wall Mountable | Yes |
| Compatible Phone | Yealink SIP-T46G |
| Compatible Phone | Yealink SIP-T46S |
| Compatible Phone | Yealink SIP-T48G |
| Compatible Phone | Yealink SIP-T48S |
| T4U-Series Compatibility | No |
| Typical Assignments | BLF, Speed Dial and Call Control |
| Operating Temperature | -10°C to +50°C |
| Operating Humidity | 10%–95% |
| Dimensions | Approx. 127 × 213 × 167 × 45mm |
| End-of-Sale Date | 31 December 2021 |
| Condition | Professionally Refurbished |
| Colour | Black |
OUR 8-POINT REFURBISHMENT PROCESS
1. Fully Tested
Display, backlight, programmable keys, page controls, LED indicators and expansion connections are checked by our experienced technicians.
2. Deep Cleaned
Each item is sanitised and professionally cleaned before resale.
3. New Leads & Cables
New high-quality leads and cables are supplied where stated.
4. Fresh Parts
High-wear or damaged parts are replaced where required.
5. Cosmetics
Cosmetic details are restored or replaced where practical.
6. Reset & Prepared
Previous key assignments are cleared where applicable and the module is prepared for configuration.
7. Final Inspection
Every item receives a final quality-control inspection.
8. Secure Packaging
Securely packed in clean protective packaging for delivery.
COMPATIBILITY & SETUP
The Yealink EXP40 is compatible with the Yealink SIP-T46G, SIP-T46S, SIP-T48G and SIP-T48S IP phones.
It is not compatible with the newer Yealink T43U, T46U or T48U series, which use the Yealink EXP43 expansion module.
The module connects to the host phone through its RJ12 expansion connection and cannot operate as a standalone device.
One or two modules can normally receive power from the connected telephone. More than two modules require a compatible 5V/1.2A external power adapter.
Up to six EXP40 modules can be daisy-chained, providing up to 240 programmable assignments across the complete installation.
Programmable-key options and LED behaviour depend on the connected phone, firmware, SIP platform and administrator configuration.
Features such as Busy Lamp Field monitoring, shared lines, pickup, parking and presence must also be supported by the connected telephone service.
The EXP40 was discontinued by Yealink in December 2021. Firmware and platform compatibility should therefore be confirmed before expanding an existing installation.
Please note: An IP phone, SIP service and external power adapter are not included unless specifically stated. Confirm the exact host-phone model before ordering.
